A concrete or brick wall needs a fixing chosen for the exact wall material, the finished frame weight and the hanger on the back. Do not start with a loose wall plug from a toolbox. First record those three facts, clear the drilling point for hidden services and read the fixing maker’s instructions as one complete system.
If the wall material is uncertain, the frame hardware is loose, the proposed hole is near wiring or plumbing, or the drilling work is outside your experience, hand the job to a competent installer. A clean hole in the wrong place is still a failed installation.
Make the mounting record before buying hardware
Write down the following information for each frame. It turns a vague request for a “rawl plug” into a job an installer or hardware supplier can assess.
- Wall
- Concrete, solid brick, perforated brick, block or unknown; note any plaster, tile or wall panel over it.
- Artwork
- Finished weight, outer width and height, including the frame and glazing.
- Rear hardware
- One or two D-rings, wire, sawtooth hanger or another fitted point; photograph it.
- Position
- Planned top edge and centreline, plus nearby switches, sockets, taps, air-conditioner lines and plumbing.
- Fixing system
- Manufacturer, product, approved wall material, stated load conditions, drill bit, hole depth and screw or hook.
Weigh the fully assembled piece rather than relying on the print size. Glass, acrylic and the frame all contribute to the load. Inspect the rear hardware as well: a rated wall fixing cannot compensate for a loose D-ring, frayed wire or weak backing board.
Identify the material behind the paint
“Cement wall” is not precise enough. Painted concrete, solid brick, hollow or perforated brick, concrete block and a plaster finish over masonry do not behave as one substrate. Fixing manufacturer Rawlplug advises matching the plug to the substrate; Bosch likewise separates anchor guidance for concrete, solid brick, perforated brick and panel walls. The correct product and installation details change with that answer.
Use building drawings, renovation records or a knowledgeable landlord or installer to identify the wall. Do not infer the core from paint texture or a knock test alone. If a previous hole exposes loose, damp or crumbling material, pause the mounting job and investigate the wall condition. Our guide to wall art and damp walls explains why the display position also matters after installation.
Choose one documented fixing system
A drilled fixing is a system: wall material, plug or anchor, screw or hook, drill-bit diameter, hole depth, spacing and load conditions. Select a product whose current manufacturer documentation covers the identified substrate and the load. Keep the plug, screw and drilling instructions together.
There is no useful universal instruction such as “use a red plug” or “drill 40 mm.” Colour is not a cross-brand standard, and product dimensions differ. Bosch notes that the bit and anchor diameters must correspond; the fixing pack specifies the compatible screw. Fischer, for example, lists separate drill diameters and minimum hole depths for each size of its light-duty plug for concrete and solid masonry. Those figures belong to that product, not every wall plug.
For a rented home, obtain permission before making a hole. If drilling is prohibited, return to our no-nails wall-art guide and stay within the mounting product’s surface and weight limits.
Clear the proposed hole for hidden services

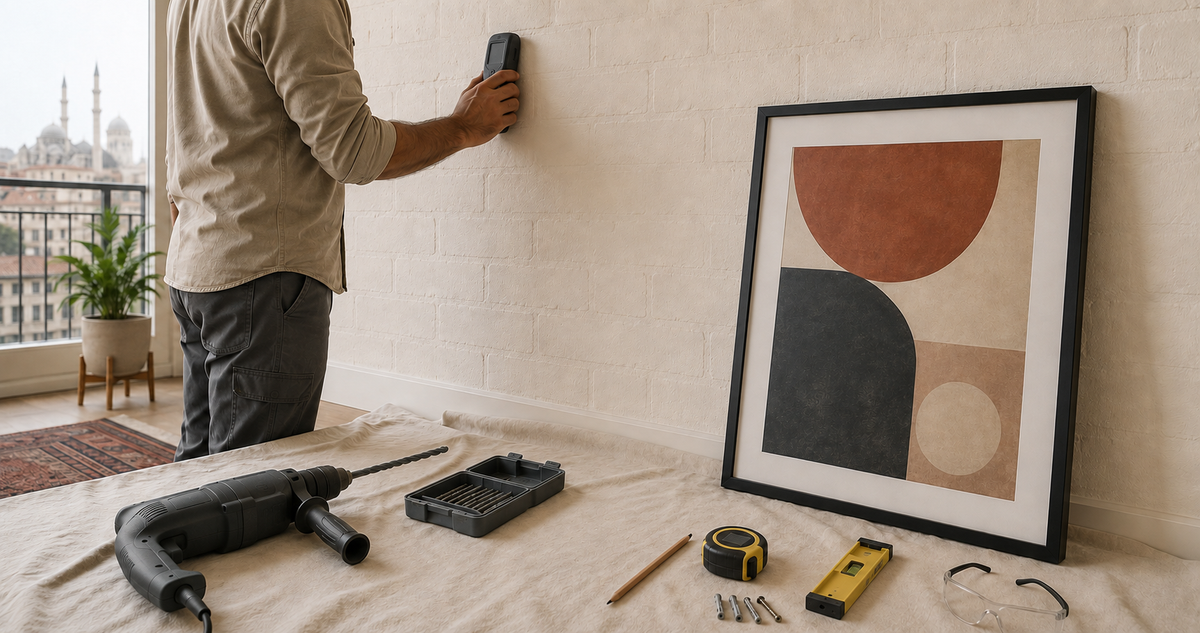

Check both sides of the wall and the route from nearby sockets, switches, lights, taps and appliances. Ask for electrical or plumbing plans where available. The UK Health and Safety Executive advises locating wiring from plans and nearby equipment, then using a suitable cable detector only when competent to do so. Its instruction is unambiguous: stop and consult a competent person when in doubt.
A detector is not permission to drill blindly. Read its manual, understand what materials and cable states it detects, and treat an uncertain result as a stop. Arrange safe electrical isolation through a competent person when the work requires it. Also stop if the proposed point sits in a column, beam, tiled wet area or any location where structural material, waterproofing or concealed services are plausible.
Transfer the frame position to the hook point
Set the visible frame position before calculating the hole. Our wall-art height guide covers furniture clearances and viewing height, while the size guide helps check whether the piece fits the available wall.
Measure from the top of the frame down to the point where the wall hook will carry the hardware. For wire, pull it upward under light tension to imitate the hung position. Subtract this distance from the planned top-edge height:
Hook height = planned top-edge height − frame-top-to-hook distance
For two D-rings, transfer both points from a level reference line. A paper template or painter’s-tape outline lets you confirm the composition before any permanent mark. For a group, build the full arrangement using the gallery-wall layout method, then create a mounting record for every frame.
Drill only to the selected product instructions
Use the drill type, masonry bit, diameter, depth, cleaning method and installation sequence stated by the fixing manufacturer. Bosch identifies masonry or concrete bits as the preferred option for hard materials such as concrete and explains that drill choice depends on material and hole dimensions. Eye protection, controlled dust collection and a stable working position belong in the job plan.
Do not improvise after drilling starts. Stop if the wall material does not match the record, the hole breaks into a void unexpectedly, the bit meets an unexplained obstruction, the hole enlarges, or the surrounding finish cracks or crumbles. Moving the mark a few centimetres without another service check is not a safe correction.
Load the fixing gradually
After the fixing is installed to its instructions, inspect the plug or anchor, screw or hook and frame hardware. Support the frame while placing it, then release its weight gradually. Check for rotation, withdrawal, widening at the hole, wire slip or movement at the D-rings. Remove the frame if any part shifts.
Do not place inadequately secured framed art above a cot, child’s bed or play zone. The kids’ room placement guide starts by mapping impact and sleep areas before choosing the decorative wall.
Use the record as an installer brief
Send the installer the wall photos, both-side inspection, likely substrate, finished frame weight, dimensions, rear-hardware photo, planned top edge and nearby services. Ask them to name the fixing system and confirm that its documentation covers the wall and load before work begins.
This is the useful dividing line: you choose the artwork and its position; the person accepting the drilling work accepts responsibility for identifying the wall, clearing the point and installing a documented fixing correctly. Once those facts are settled, hanging wall art on concrete or brick becomes a controlled mounting job rather than a guess.
